Kitchen Reno Part 1: The Backsplash

We have a small, but hardworking kitchen. It’s essentially the heart of our home: Waldek loves to cook, make cocktails and generally nurture ourselves and our friends through this space. He also happens to have his desk right beside it (we have an approx. 500 sq ft open-concept first floor that combines kitchen, office nook, and living room). When we moved into our place, we knew it eventually needed to change to better suit us, so here we were: 1 year after finally doing it.

Our Goals:

  • Reuse as much of the old: we wanted to keep as many parts and fixtures of the original kitchen as possible. This was important for us to minimize waste and keep it budget friendly. Our kitchen was getting a new face, but the guts would be the same.

  • Lighten up the space

  • Visually enlarge the space

  • Bring warmth and cozyiness to the space

Our Renovation Background:

None. Nada. We are D.I.Y Google-everything-and-hope-that-theres-a-Youtube-video-about-it kind of people. We aren't builders, architects or interior designers in any sense of the word. The only leg-up we may have is that we know how to Photoshop and Waldek is proficient with basic tools. And that's kind of the great thing; if we're able to tackle our kitchen virtually by ourselves, it's possible for other everyday folk too.


The Old Kitchen

This was our kitchen initially. We didn’t change the layout at all, because it was actually great. The “U” counters swung into the space to divide the kitchen and office nook. Our appliances, although aging, functioned fine and didn’t need an upgrade. The exception was the microwave, which died and was upgraded to a white, low-profile model.

The previous owners installed a pretty dreadful mirrored backsplash, which in theory was supposed to enlarge the space but in practice, just reflected counter clutter and made it actually feel smaller. It was also a nightmare to clean.

Here's what we kept from the old kitchen:

  • Fridge, oven, dishwasher

  • Half the cabinets

  • Granite countertop

  • Faucet

  Whirlpool  Over the Range Microwave  ( Model #YWML55011HW)

Whirlpool Over the Range Microwave (Model #YWML55011HW)

 The mirrored backsplash that needed to go

The mirrored backsplash that needed to go

 Freshly ordered in tiles

Freshly ordered in tiles

Removing the mirrored backsplash was thankfully an easy process; it was just a little by dangerous and needed to be boxed up and disposed of properly. Already the kitchen was starting to have a breath of fresh air.


Floating Shelves

The focal point to our kitchen would be two long floating shelves! Their purpose would be to open up the space. Aesthetically, we could enjoy displaying some kitchenware but just as importantly was its functional: it would allow us to grab and go seamlessly without having to open cabinet doors. It would help with workflow.

So, Waldek tore out the cabinets on the Western wall. He ended up installing several L-brackets because we couldn’t find “proper” floating brackets for the depth of shelf we wanted. If you have a shelf with different dimensions than ours, you may have much more luck finding hardware online. We would have preferred to go this route, but alas, we worked with what we could find.

 L-brackets were carved into the drywall and nailed into studs where available

L-brackets were carved into the drywall and nailed into studs where available

 The area was then patched up and sanded

The area was then patched up and sanded


The Tile

We chose a simple white tile from a local shop: Pollock's Carpet Market in Roncesvalles, Toronto. These tiles were made in Italy by manufacturer Marazzi. We loved these because of the matte texture would help disguise kitchen grime (less cleaning time is always A+ in my books) and bring in more earthiness than a slick gloss finish. The uneven, hand-made textural quality sealed the deal.

 Marazzi, BRICCO Series, BIANCO, (2.76" x 11.02")

Marazzi, BRICCO Series, BIANCO, (2.76" x 11.02")

 Waldek's uncle had a ceramic tile cutter that we borrowed, but these are easy to rent out from a local hardware shop

Waldek's uncle had a ceramic tile cutter that we borrowed, but these are easy to rent out from a local hardware shop

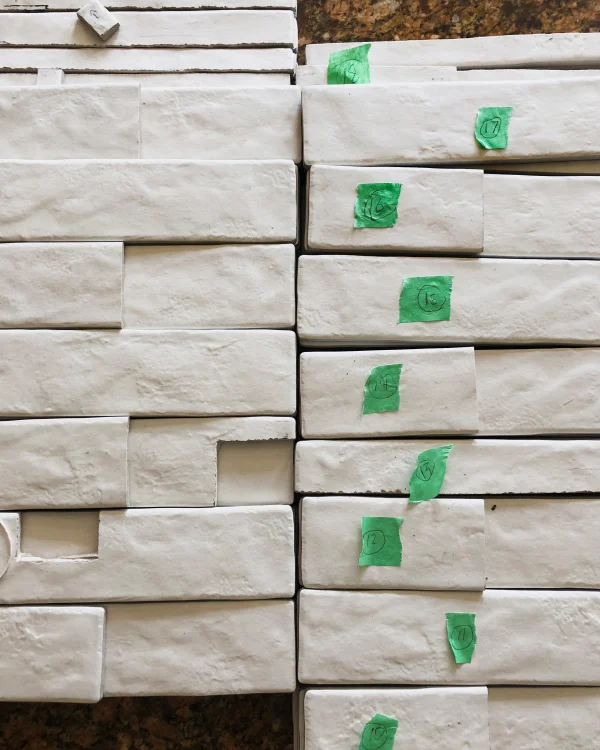

 Tiles pre-cut and ready for placement

Tiles pre-cut and ready for placement


The Install

We went with a classic tile pattern, which is just the offset (running bond). The first step of course, was laying down the grout. After the initial few passes its easy to really pick up a technique. For spacing, we used 1/8-inch spacers.

 We use 1/8-inch tile spacers

We use 1/8-inch tile spacers

 The first layer: mortar

The first layer: mortar

 Waldek meticulously cut the tiles around the sockets

Waldek meticulously cut the tiles around the sockets

Before the grout could harden, we quickly worked on laying down the tile, working section-by-section from the bottom-up. This is where having two pairs of hands come in handy! I would grout while Waldek placed the tile and spacers.

 We lived life on the edge and forgot to cover the sockets during the entire install

We lived life on the edge and forgot to cover the sockets during the entire install

 First wall complete!

First wall complete!

The biggest hurdle was cutting the tiles thinly to accommodate for the L-brackets on this Western wall. We broke quite a few tiles attempting it, so always order more than you need! You won't regret it.

 We whipped up some custom spacers with wire we had lying around

We whipped up some custom spacers with wire we had lying around

 3/4 view of partially hidden bracket

3/4 view of partially hidden bracket

 Two neat rows almost ready for shelving

Two neat rows almost ready for shelving

The result of all that meticulous work were brackets that were smoothly hidden behind the tile. They would then slide into a hollowed-out wooden shelf and cover the last sliver of visible mortar. You can have L-brackets over your tiling to show visible supports for your selves, which is a look, but we love that the hardware was completely hidden.

 Overall, we spent about a day laying out each tile.

Overall, we spent about a day laying out each tile.

Next … we grout! We went with a bright white as we didn’t want the outline of the tile to stand out. The backsplash is supposed to serve as a quiet backdrop to the entire kitchen: something that complimented the white walls in the rest of the space but was textural enough to denote it as a separate space. We also had a busy accent wall right beside it so we didn't want two neighbouring patterns competing.

 Bright white grout

Bright white grout

 Waldek did the small vertical nooks first

Waldek did the small vertical nooks first

 Finished (left) vs. Unfinished (right)

Finished (left) vs. Unfinished (right)

To see how the backsplash turned out and the painting of the cabinets, see: Part 2.


Product List:

  • Tiles: Marazzi

  • Microwave: Whirlpool (Model #YWML55011HW)
